USB powered, programmable Geiger Counter Module

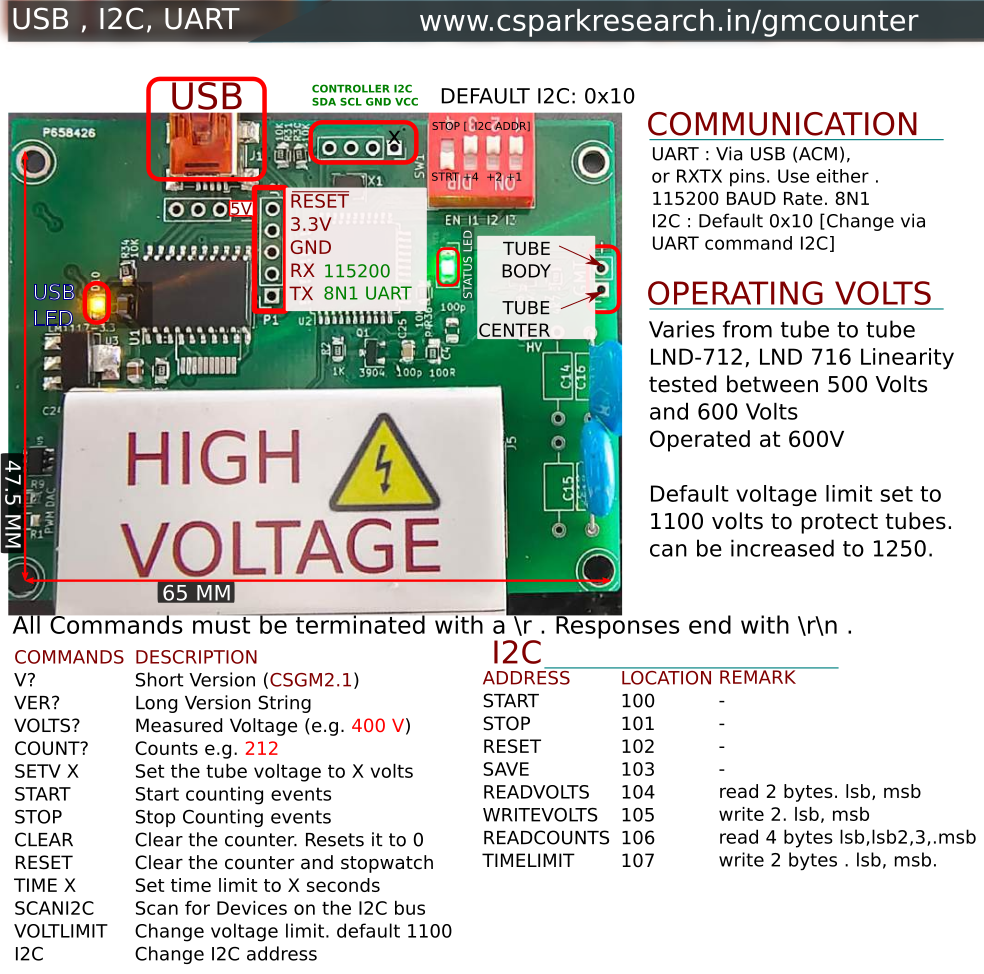

This programmable HV board with USB/UART/I2C interfaces has an on-board 12-bit DAC, an HV boost module, and some electronics for pulse counting, making it a handy tool for labs/OEMs. Measure radioactivity with ease!

It is programmable via SCPI commands sent over the USB/UART ports, and is also accessible via the I2C port which has 3 configurable addresses. I2C support is built into SEElab's I2C logger app where it is listed as one of the supported sensors (Programmer's manual )

The webapp is available at https://jithinbp.in/gmcounter.html and is accessible via web browsers with webusb enabled. The android app is here: https://play.google.com/store/apps/details?id=com.cspark.research.gmc&pcampaignid=web_share . Manufactured by my startup CSpark Research

The WebApp and Visual Programming

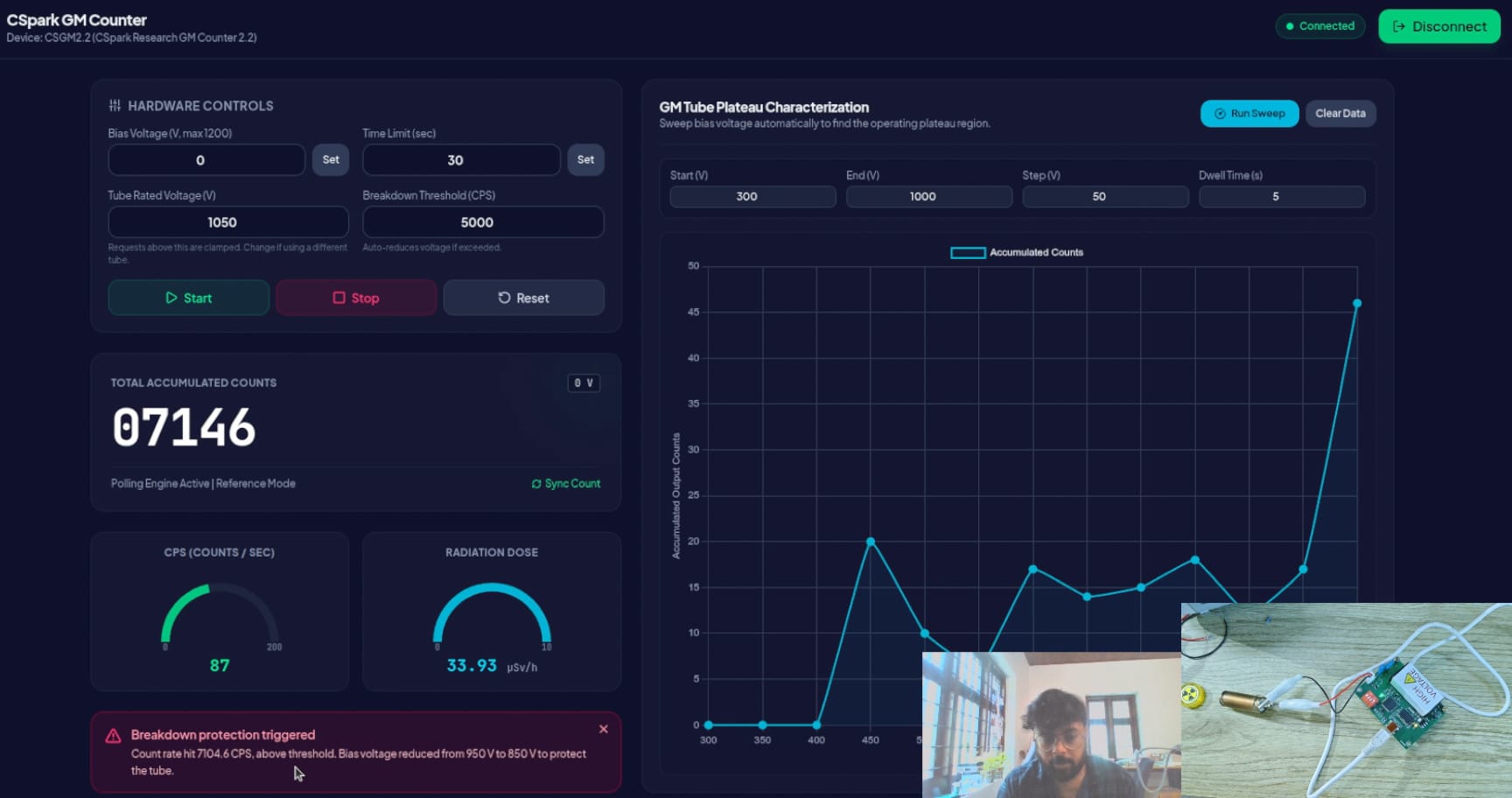

The web app is capable of plateau recording, counting, and protecting tubes from very high count rates (Continuous Emission)

The webapp is available online and works with webusb supported browsers such as Chrome. It can set the voltage, use the counting features, and also automatically plot the GM tube characteristics. The built-in tube protection features are configurable.

The Android app and visual programming

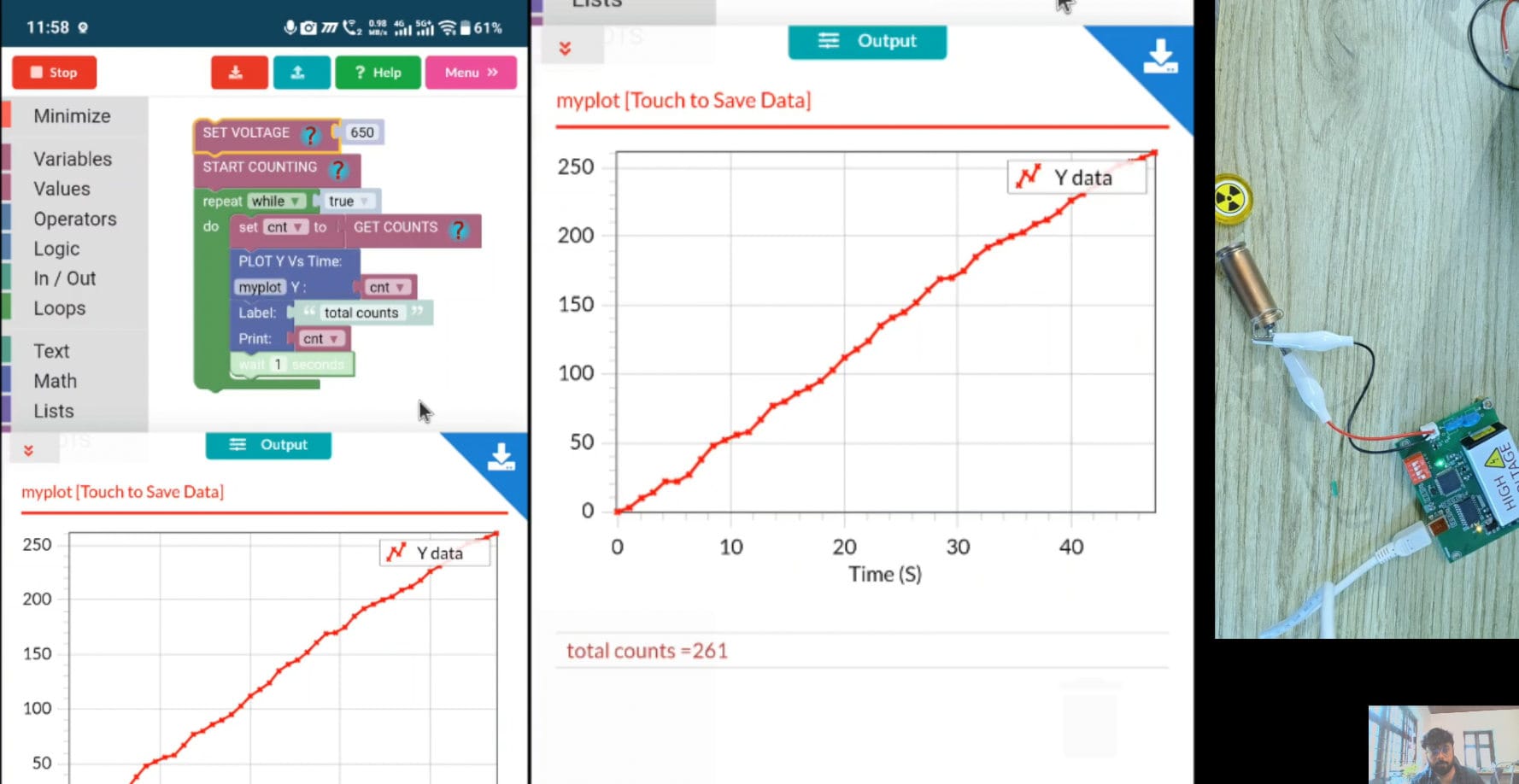

The android app is similar, but also includes a visual programming interface like MIT-Scratch which lets you drag and drop blocks to write simple automations. JS code editing is also possible. No external power supply is needed, and you can simply power it off of USB.

Walkthrough Video For the Module

Connecting with SEELab 3.0

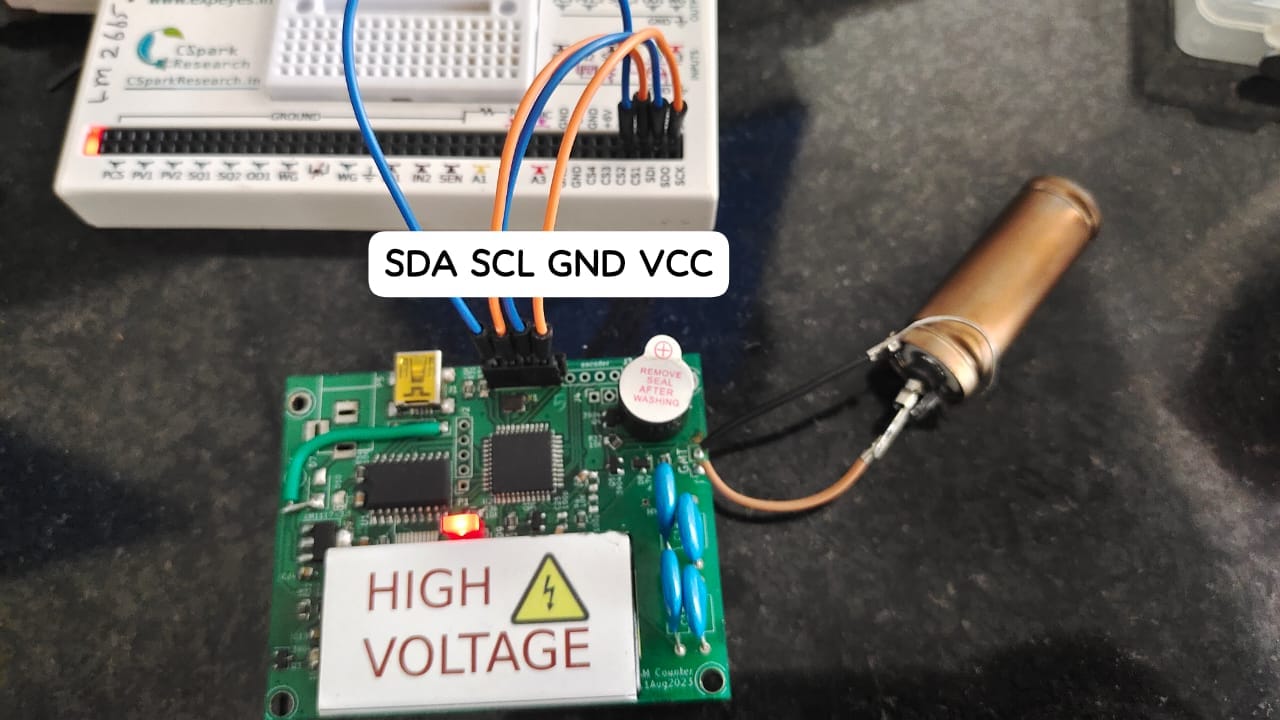

Board connected to SEElab 3.0 to record counts via the I2C sensor logger

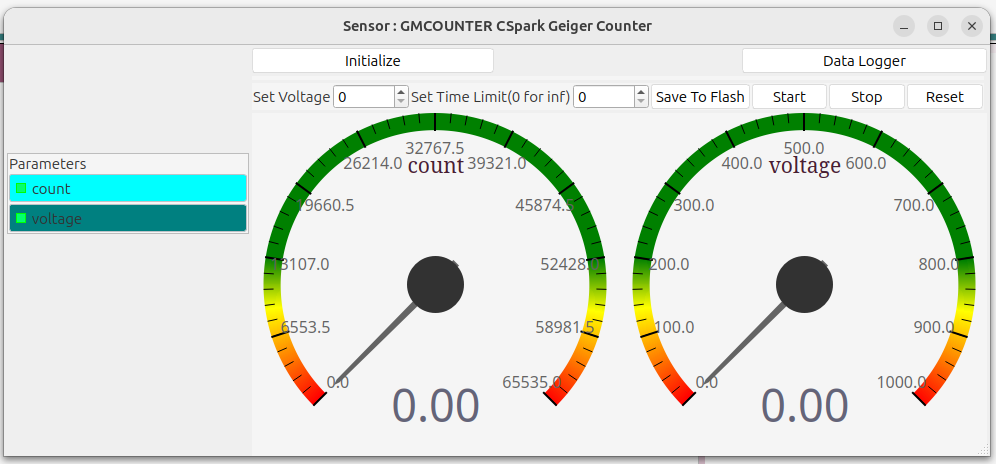

SEELab's I2C logger showing the GM counter recorder options

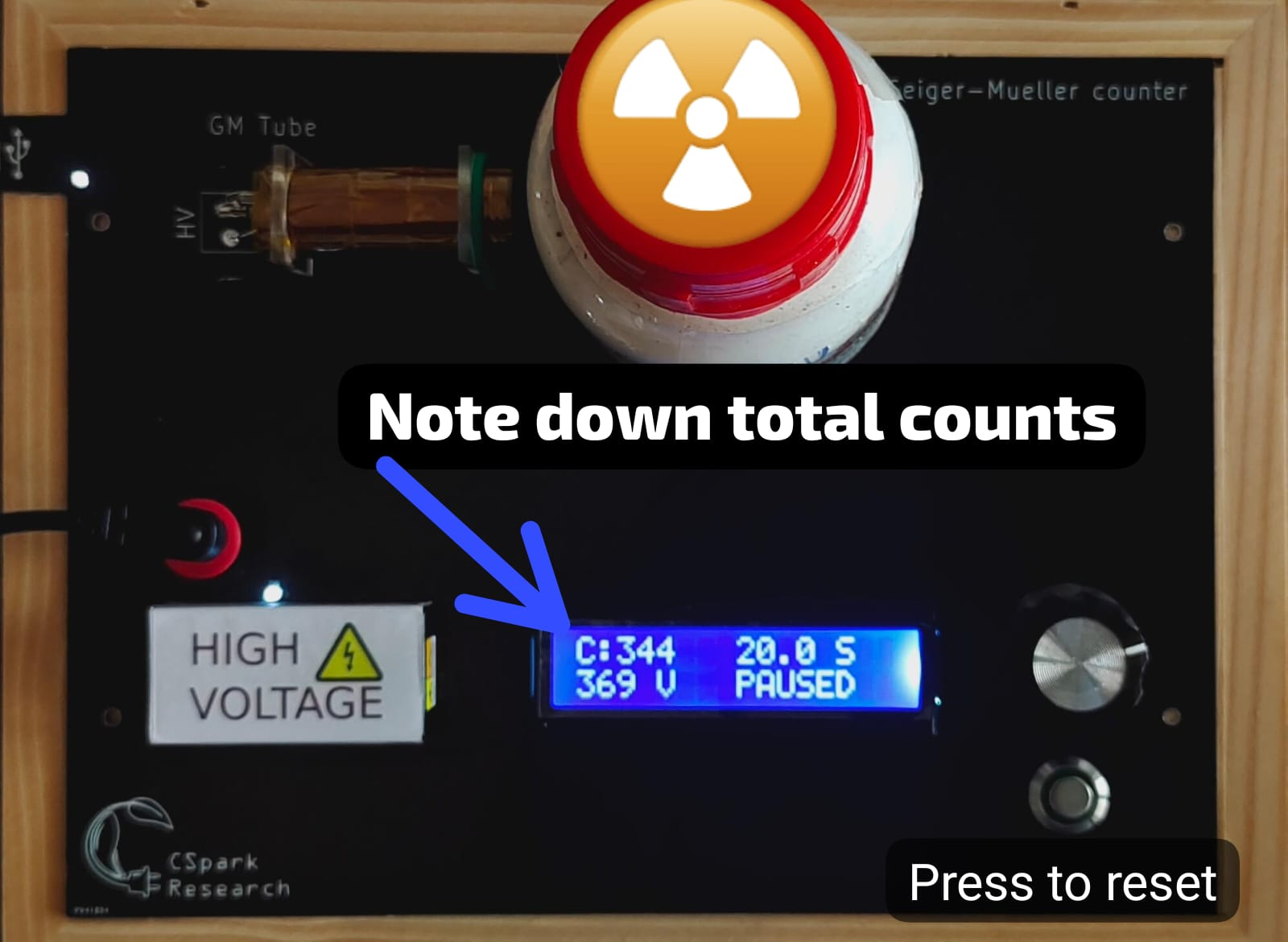

The G M Counter device for educational institutions with a display and control knobs (+USB Access) and a high quality GM tube with Mica window

Large Format GM counter for Colleges/Schools

User Manual for this one: https://gmcounter-docs.readthedocs.io/en/latest/
